EMPOWR™ Complex Primary Knee
Category: Knees

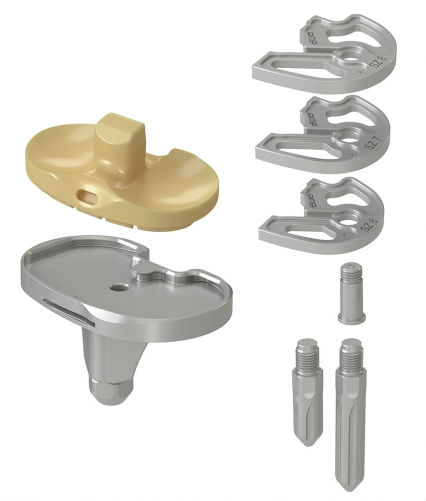

The EMPOWR Universal Tibia and EMPOWR VVC™ Tibial Insert broaden the clinical indications of the EMPOWR Knee System™ to provide more solutions through a seamless and efficient transition from standard primary, to complex primary and revision knee arthroplasty procedures.

Description

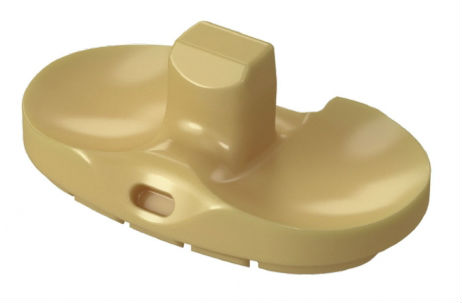

  • 1. e+™ POLYETHYLENE
    This knee-specific formula, blended with vitamin E and moderately cross-linked, reduces oxidation and long-term wear1
  • 2. AUXILIARY CONSTRAINT
    The Varus Valgus Constrained (VVC) insert is designed to provide the necessary support and stability in knees with supportive soft tissue deficiencies
  • 3. WIDE RANGING GAP CORRECTION
    Multiple insert thicknesses to support up to 49mm of tibiofemoral gap correction when augments are used



  • 4. ROBUST LOCKING MECHANISMS
    Dovetail and posterior captures facilitate poly insertion and securely lock insert in place. Reinforcement Pin capture, for use in 22 and 25mm inserts, provides increased static and fatigue strength in thicker inserts3

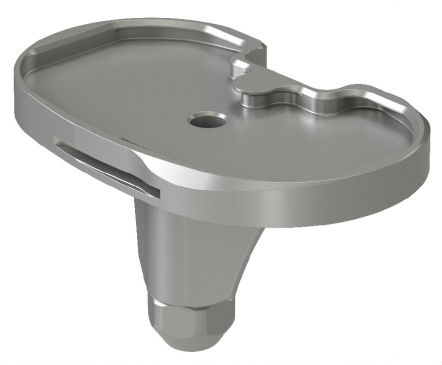

  • 5. VERSATILE, ASYMMETRIC BASEPLATE DESIGN
    Maximizes cortical coverage and prevents overhang for long-term fixation2 and can be used as a primary baseplate with the use of a stem plug, or with a stem and/or augments when indicated
  • 6. TIERED KEEL SIZES
    3 size specific lengths to closely match patient anatomy and help preserve bone

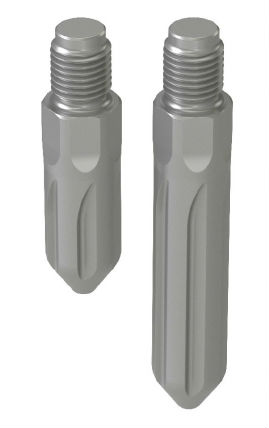

  • 7. CEMENTED TIBIAL STEMS
    Optional stems available in multiple lengths and diameters to provide additional stability

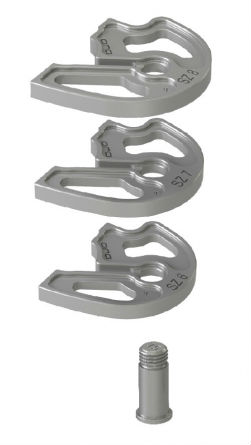

  • 8. CEMENTED TIBIAL AUGMENTS
    Optional half-block augments can be used in both medial and lateral compartments and rigidly fix to the tibial baseplate with a single, appropriate length screw
  • 9. RIGID FIXATION
    Multiple cement channels designed to allow for increased cement fixation to components
  • 10. STACKING FLEXIBILITY
    Stackable up to 15mm in blocked or tapered configurations to appropriately match tibial anatomy

Specifications

EMPOWR VVC™ TIBIAL INSERT
  • 10, 12, 14, 16, 19, 22*, 25*mm
  • ± 3.5°
  • ± 5.5°
  • e+™ UHMWPE

EMPOWR UNIVERSAL TIBIAL BASEPLATE
  • 2-11 (Asymmetric)
  • 2-3 (31mm), 4-8 (35mm), 9-11 (43mm)
  • CR, 3D, PS, VVC
  • CoCr

EMPOWR UNIVERSAL TIBIAL STEM
  • 40, 65mm
  • 10, 12, 14mm
  • Cemented
  • CoCr

EMPOWR UNIVERSAL TIBIAL AUGMENT
  • 5mm
  • 15mm
  • Ti Screw (5, 10, 15mm)
  • Ti

* Reinforcement pin required

e+™ Surgeon Testing Summary 0011110-004
3DKnee™ Technical Monograph 0011102-004
EMPOWR VVC™ Locking Mechanism Testing PR17-063-01
